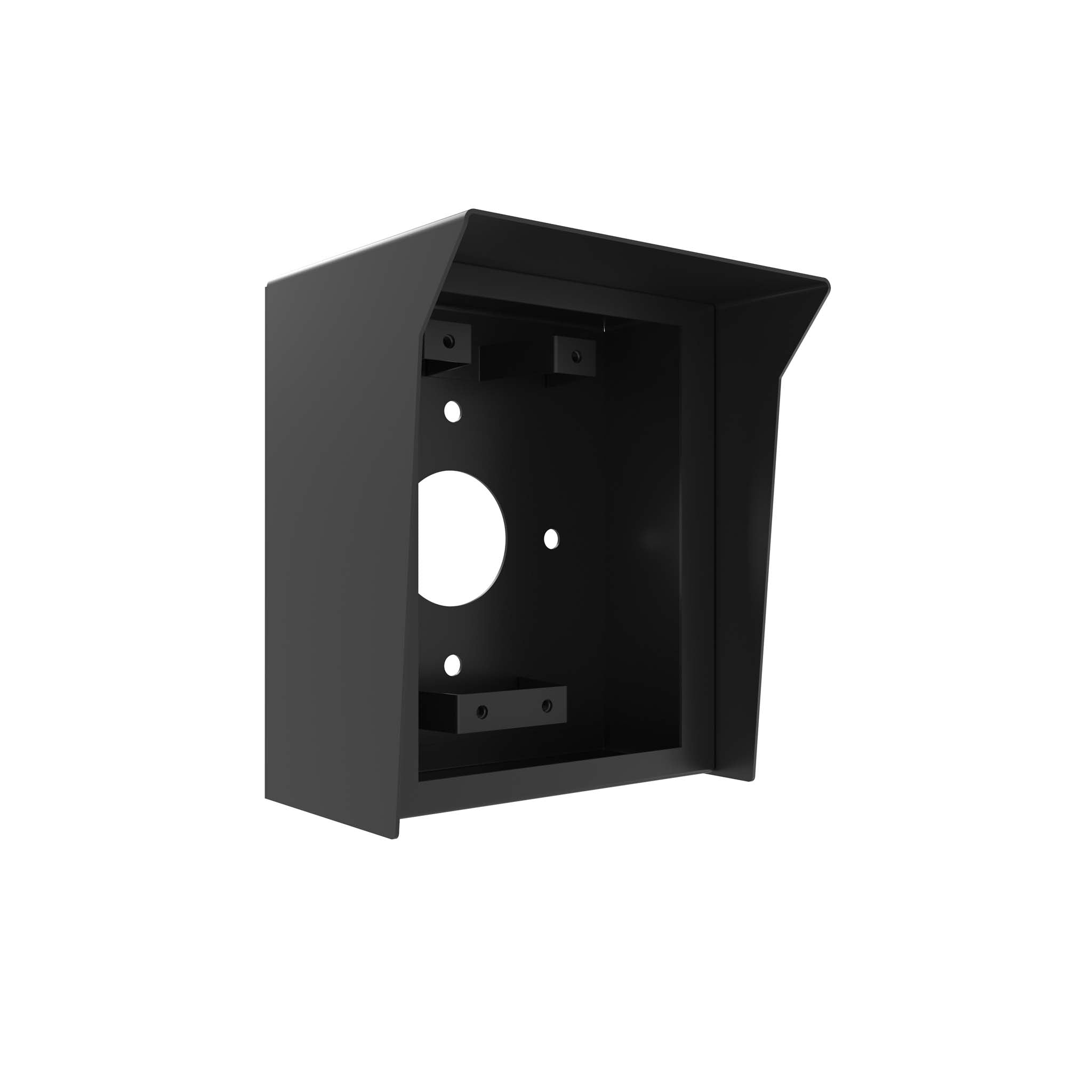

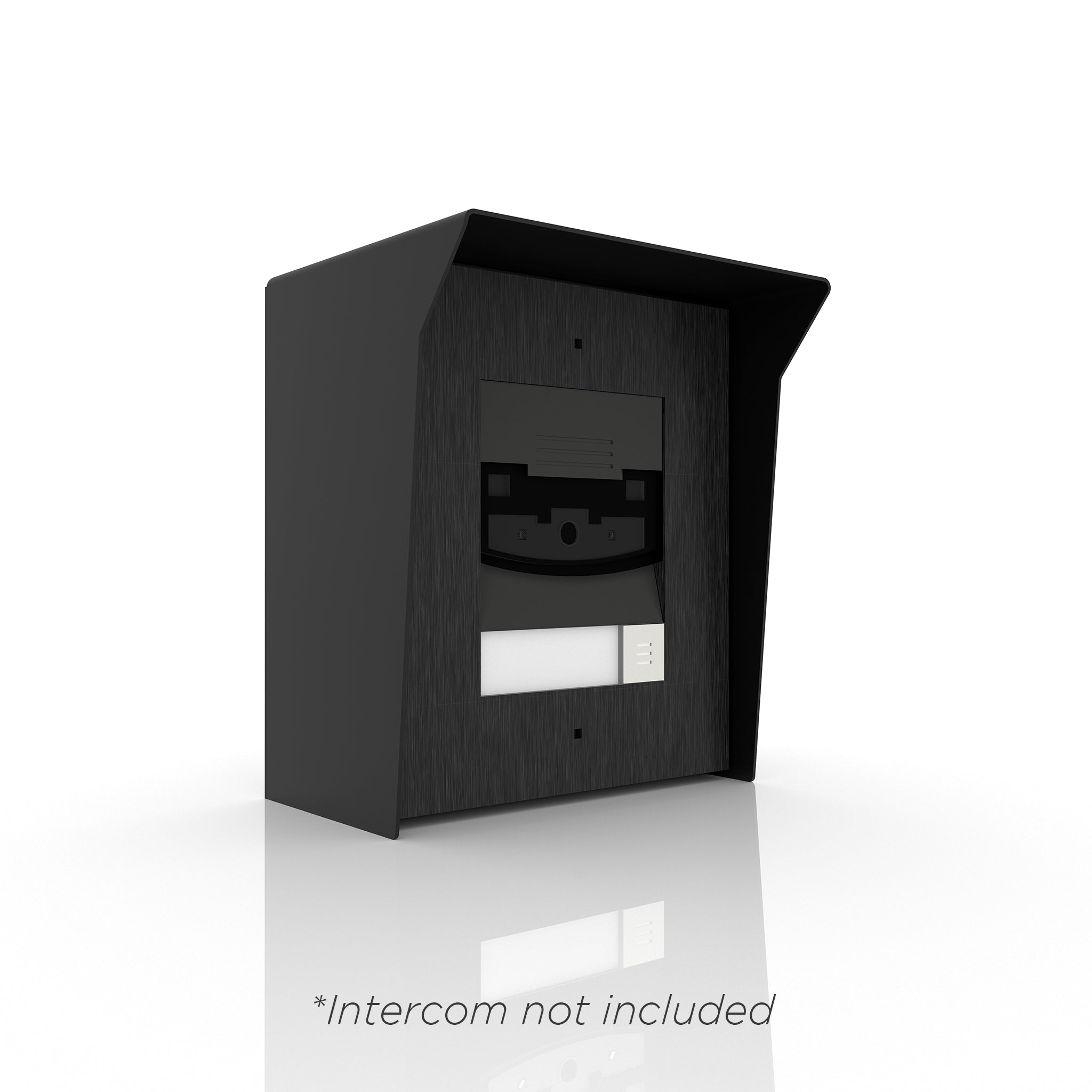

The Housing is designed to hold the recessed version of the Control4 DS2 Mini, 2N IP Solo, or Savant Single Height Door Station. Create a complete gate entry solution with the Gooseneck Pedestal and concrete anchor mounting kit. The Housing eliminates glare from overhead sun so that you can see the video feed clearly. It also protects the intercom from UV exposure, dirt, and rain to extend it's life and reduce cleaning. Powder coated carbon steel is weather resistant and powder coated stainless steel offers the best longevity in coastal areas. The Housing is color matched to the intercom.
Standard Vs. Retrofit Housing
Documents
Install Guide PDF
Gate Entry Parts
The following components are required for a complete Control4 gate entry system.
Manufacturer | Description |
Control4 / 2N / Savant | DS2 Mini, 2N IP Solo, or Savant Single Height Door Station (Not Included) |
Steel Cut Design | Outdoor Housing (Included) |
Steel Cut Design | Gooseneck Pedestal (Not Included) |
Steel Cut Design | Mounting Kit (Not Included) |
Compatibility
Control 4
Product Name |
Part Number: Black |
Part Number: Silver |
DS2 Mini & DS2 Mini Flush Plate |
C4-DS2MINI-BL & C4-DS2MINIFP-BL |
C4-DS2MINI-BN & C4-DS2MINIFP-BN |
Savant
Product Name |
Part Number: Black |
Part Number: Silver |
Flush Mount Single Height Door Station |
DOR-FMB-00 |
DOR-FMS-00 |
2N
Product Name |
Part Number: Black |
Part Number: Silver |
2N IP Solo |
9155301CBF |
9155301CF |
